Recently, I made a table in my office to act specifically as an electronics workstation. So far this has been REALLY handy, but also, a little hard to shoot video of. I also had a lot of interest in the comments about making an overhead camera rig, so it just made sense make one for the table. I spent a great deal of time trying to come up with a really clever way to be able to position the camera, so that I had lots of flexibility, but also make it so the project wasn’t overly complicated.

After a while, I got stuck on the best way to pull it off.  Then I looked in the corner of my office, at a stack of mic stands…

It turned that one of the cheapest (read, I dislike using it) boom stands that I owned, had the full range of motion that I wanted for the camera, it already had the correct size thread on the end, AND it was $17 on Amazon (!!!)

Check out how I put the whole thing together, in an afternoon.

I used 3/4″ angle iron, 1/2″ square tubing, flat steel and solid rod.

Screen-Shot-2015-09-05-at-4.00.21-PM

I measured four pieces of the square tubing to 18″ each.

Screen-Shot-2015-09-05-at-4.00.26-PM

These were cut off with a cut off wheel on the grinder.

Screen-Shot-2015-09-05-at-4.00.33-PM

I cleaned up the cut edges with a flat file.

Screen-Shot-2015-09-05-at-4.01.11-PM

The 36″ angle iron are the verticals, the square tubing is for the horizontal support.

Screen-Shot-2015-09-05-at-4.01.21-PM

I used magnets to hold the pieces at 90˚ angles.

Screen-Shot-2015-09-05-at-4.01.27-PM

All four corners were welded together.

Screen-Shot-2015-09-05-at-4.01.34-PM

I made a second, identical frame then smoothed all of the welds with a flap disc.

Screen-Shot-2015-09-05-at-4.01.47-PM

I used a square file to smooth the inside corners.

Screen-Shot-2015-09-05-at-4.02.17-PM

Using the magnets for support and squaring, I added another square tube (36″) in between the two frames. This will become the top, back side.

Screen-Shot-2015-09-05-at-4.02.24-PM

I welded it in place. You could optionally add another support on the front side as well, but I didn’t find the need.

Screen-Shot-2015-09-05-at-4.02.35-PM

I measured up 6″ from the back bar, and centered the steel rod on the marks.

Screen-Shot-2015-09-05-at-4.02.47-PM

I welded the rod in place, making sure to get good penetration all of the way around it.

Screen-Shot-2015-09-05-at-4.02.54-PM

I flipped the frame over, and added a piece of angle iron across the bottom, back side.

Screen-Shot-2015-09-05-at-4.03.12-PM

All of the welds were smoothed with the flap disc.

Screen-Shot-2015-09-05-at-4.11.45-PM

I sprayed the whole frame with flat black spray paint.

Screen-Shot-2015-09-05-at-4.12.03-PM

For the over head mount, I used a $17 boom mic stand.

Screen-Shot-2015-09-05-at-4.12.38-PM

I removed the bottom section as well as one of the cross bars.

Screen-Shot-2015-09-05-at-4.13.23-PM

I added a rubber pad inside the section that fit around the rod, to help it hold tight.

Screen-Shot-2015-09-05-at-4.13.37-PM

Then I mounted this on the steel rod in the frame.

Screen-Shot-2015-09-05-at-4.13.54-PM

I used Joby tripod heads on all of my tripods. They have a smooth ball joint and are easy to move the camera between tripods.

Screen-Shot-2015-09-05-at-4.14.14-PM

The thread on the mic stand is the same as the thread for the tripod head (how cool is that??).

Screen-Shot-2015-09-05-at-4.14.59-PM

The camera slid right into place and locked into the tripod head.

Screen-Shot-2015-09-05-at-4.15.24-PM

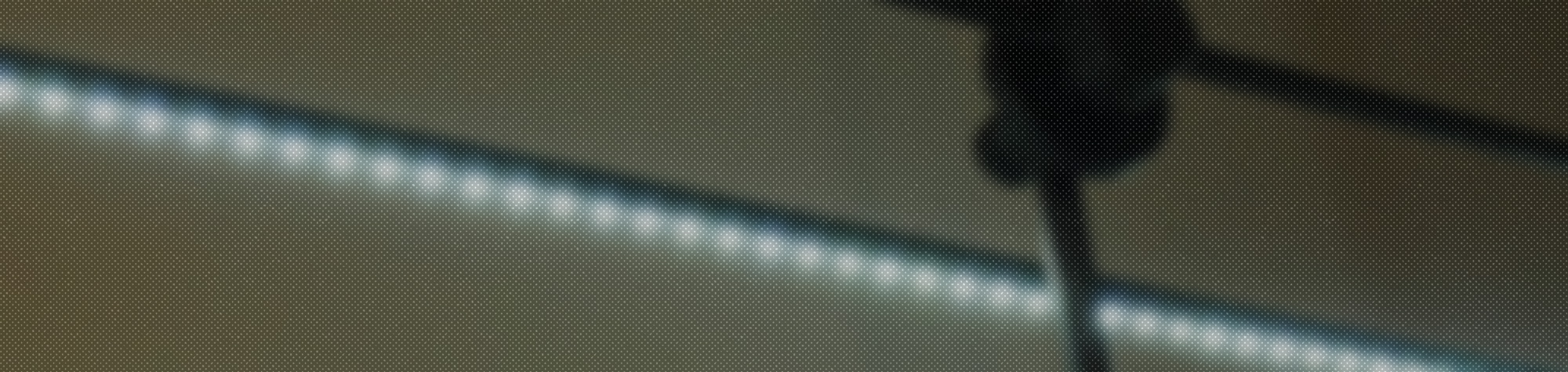

I got a 5000k˚ (color temperature) strip of LEDs, with a remote.

Screen-Shot-2015-09-05-at-4.15.36-PM

These just plug together and work out of the box.

Screen-Shot-2015-09-05-at-4.16.02-PM

The strip has an adhesive back, so it’s very easy to attach to the angle iron sides.

Screen-Shot-2015-09-05-at-4.16.46-PM

There are marks ever few inches where you can cut the strip. There are re-solder terminals at these points.

Screen-Shot-2015-09-05-at-4.16.56-PM

Once my strips were in place, I connected them by soldering on short wires to the provided terminals.

Screen-Shot-2015-09-05-at-4.17.17-PM

Let there be remote controlled light!

Screen-Shot-2015-09-05-at-4.17.29-PM

The color temp matches my other lights, but there are different options if you have a different preference.

Screen-Shot-2015-09-05-at-4.17.34-PM

The light is pretty even from all directions.

Screen-Shot-2015-09-05-at-4.17.41-PM

The steel frame keeps the footprint of the rig to a minimum, but helps it stay very sturdy and rigid.



The boom arm gives you a huge amount of control over camera placement.

Screen-Shot-2015-09-05-at-4.17.58-PM

The overhead shots turned out better than I expected!!

Screen-Shot-2015-09-05-at-4.18.10-PM

The steel frame keeps the footprint of the rig to a minimum, but helps it stay very sturdy and rigid.
